The role of the control system :
Numerical control point of the machine tool cremated wire-cutting processing control system, is the nc edm wire-cutting processing stability for important segment. Control of the reliability of the system, stability and control accuracy and the dynamic performance and automation degree, are directly affects the processing process indicators and worker's Labour intensity.
Control system of the species and features:
Nc edm wire-cutting processing machine control system is divided into cutting track control system and control system in and, in addition, there are go wire agency control, machine tool operation control, has other auxiliary control system.

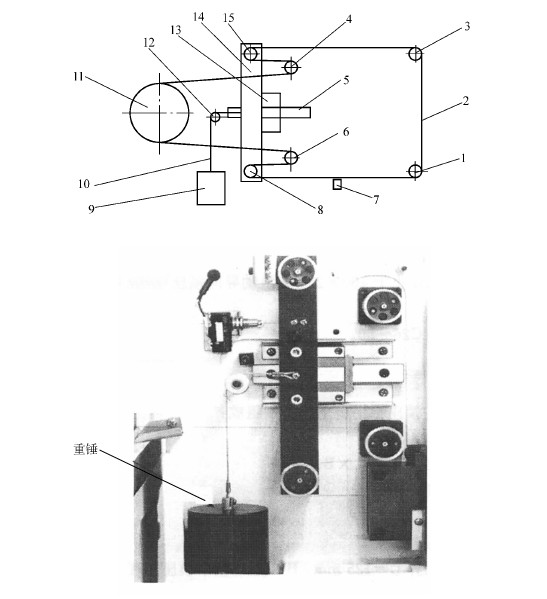

1, 3-2-leading round wire electrode 4, 6-5-an introduction to auxiliary linear guide
7-8, 15 of conductive-zhang tight 9--a heavy hammer pushes the 10-11-store wire rope cone
12-13-guide slide block diagram 14-move pieces
Cutting track control effect, is according to the requirements of the processing automatic control electrode wire relative work far move direction, so as to size and shape material processing.
The control system of the function, is relatively workpiece electrode wire by certain direction according to the spark gap with the size of the state automatic control into to speed, in order to make the speed and workpiece removal in linear want to balance, maintain the stable processing.
Go silk institutions control circuit role, is to control the movement of the electrode wire itself. Electrode wire is not only beneficial to the movement of the liquid medium into the spark gap, and for the discharge product ruled out the spark gap.
Machine tool operation control belong to open and close is controlled, including all kinds of switch hige control, etc.
Auxiliary control system is to point to the basic control system besides, be helpful for processing smoothly, increase control function, improve automation degree of all kinds of control circuit.
